Crosshead & Crosshead Shoe – Dimensional Analysis and Prototype Validation
This project involved detailed dimensional verification of crosshead and shoe models to assess assembly feasibility. Analysis revealed a ~0.49 mm rail-to-guide interference, along with asymmetric rail depths and fillet mismatches affecting alignment and motion. A 1:5 scale prototype confirmed the interference, providing clear evidence for design revision before manufacturing and reducing the risk of added cost, rework, and production delays.

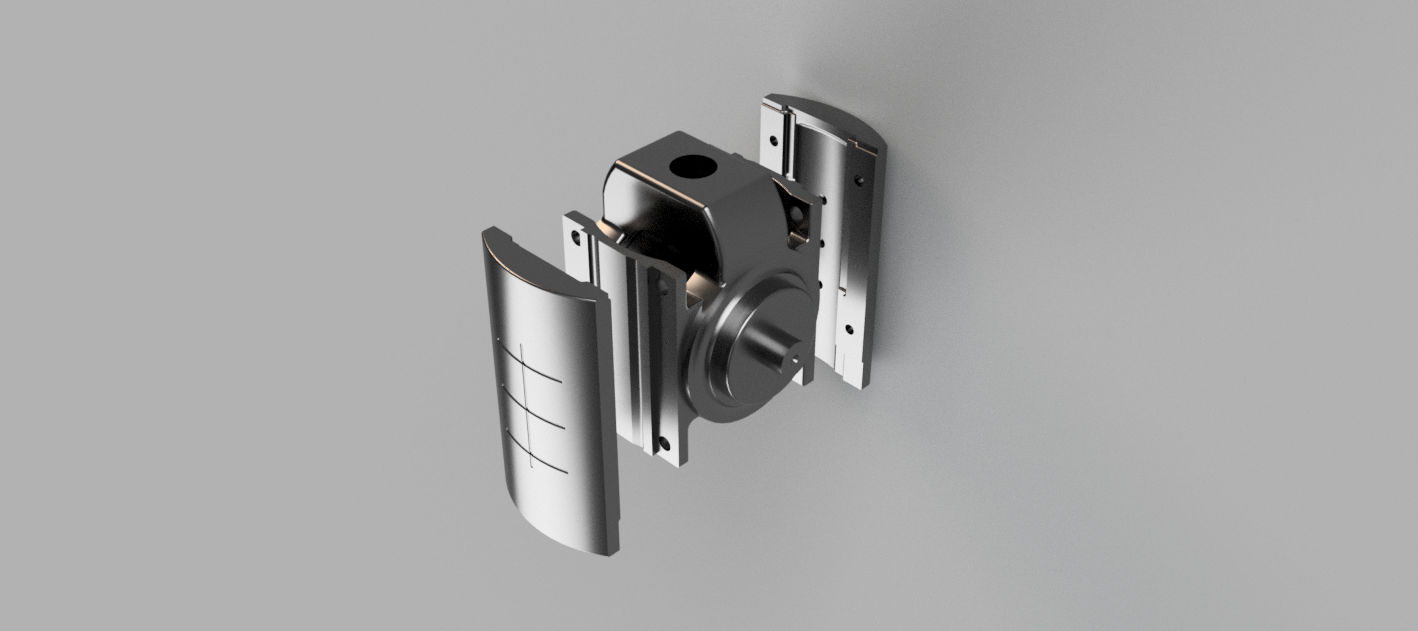

Exploded CAD view of the crosshead and shoe assembly used for dimensional verification. Critical rail, guide, and mating features were evaluated for fit, alignment, and functional clearance.
Dimensional review identified multiple geometric discrepancies in the shoe model, including rail-depth asymmetry and an interference condition that could prevent proper assembly and sliding motion.
Detailed comparison of corresponding rail features confirmed true geometric asymmetry rather than simple model misalignment. Measurement differences of approximately 0.20–0.49 mm indicated inconsistencies that could affect fit and wear.

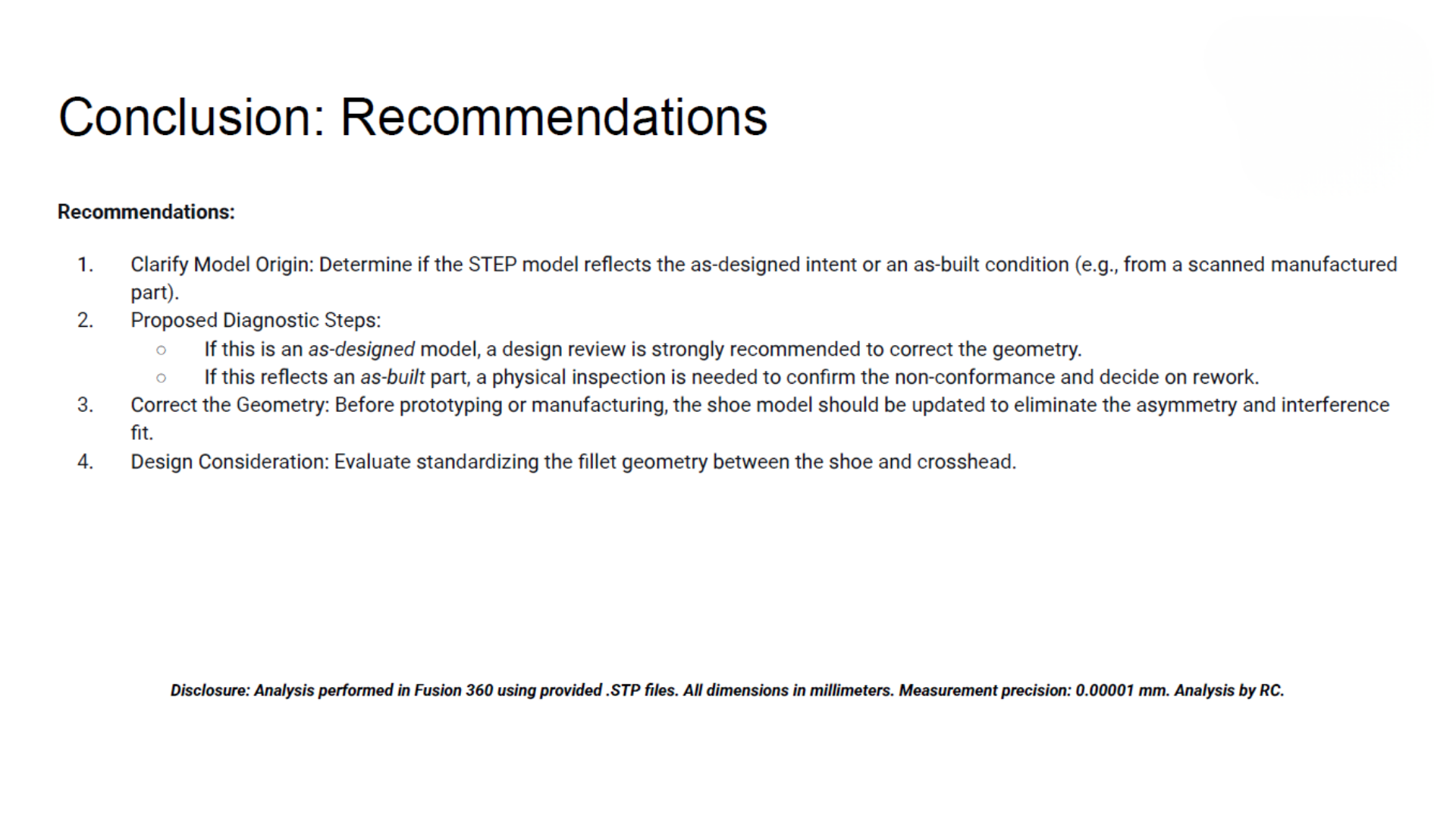

The analysis was translated into corrective recommendations, including verification of model origin, physical inspection where applicable, and geometry revision prior to prototyping or production.
A 1:5 scale prototype physically confirmed the predicted rail-to-guide interference. The inability of the parts to seat freely supported the dimensional findings and demonstrated the need for design revision before manufacture.
